1965 6-cylinder 1967-1968 Ford Mustang Upper coupling rod spring / FM-EC071 C3DZ-7523A
  • 1965 6-cylinder 1967-1968 Ford Mustang Upper coupling rod spring / FM-EC071 C3DZ-7523A
  • 1965 6-cylinder 1967-1968 Ford Mustang Upper coupling rod spring / FM-EC071 C3DZ-7523A

Clutch Z-Bar Return Spring, Upper, 200 289 302, Mustang 1965, 1967-1968

FM-EC071

Clutch Z-bar return spring, upper, 200 289 302, Mustang 1965, 1967-1968

zł37.28
Quantity
Out-of-Stock

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

favorite_border favorite
Description

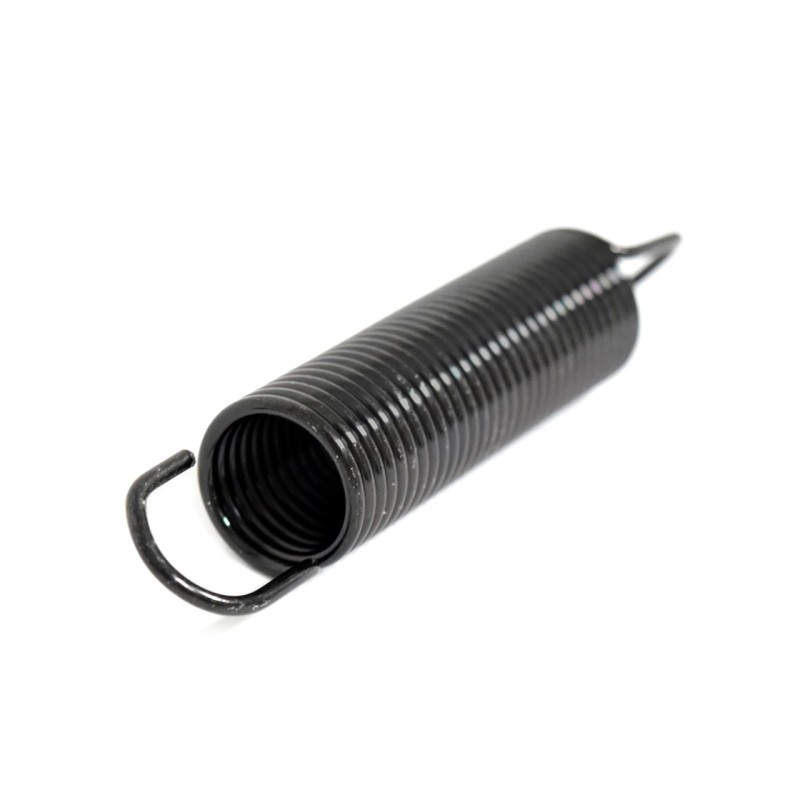

Strong clutch Z-bar spring, often installed to replace an old, rusted or simply missing one. It ensures proper clutch operation.

This is the upper return spring of the clutch linkage. It connects the firewall to the upper part of the clutch bellcrank (Z-bar). It helps disengage the clutch and pulls the linkage back to its rest position. This is an original-style replacement, made to original engineering drawings and designed as a direct replacement for a worn spring.

  • Application: 1967-1968 Mustang with 200, 289 or 302 engine and 1965 Mustang with 6-cylinder engine
  • Spring length: approx. 81 mm (3 3/16")
  • Sold individually
  • Installation: direct replacement, no modifications required
Product Details
FM-EC071

Data sheet

Year
1965
1967
1968
Scope of delivery
Piece
Mounting position
Front – Vehicle front
Material
Steel
Engine
200 R6
289 V8
302 V8
Gearbox
Manual Transmission T10
Manual Transmission T5
Color
Black

Specific References

MPN
C3DZ-7523A
