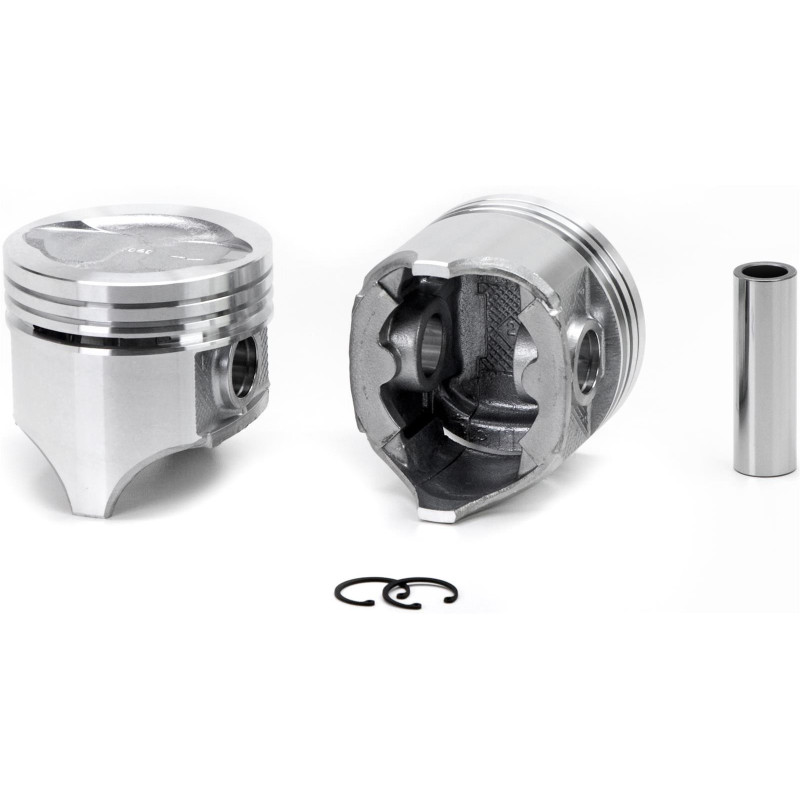

67-70 Big Block 390 engine. good quality pistons from Silv-O-Lite
.
No greater reaming than 0.30 is recommended for FE engines
.
| SILV-O-LITE 1130 Specifications | |
|---|---|
| Bore Diameter (IN) | 4.05 |
| Bore Diameter (MM) | 102.9 |
| Compression Height (In) | 1.76 |
| Compression Height (mm) | 44.7 |
| Compression Ratio | 9.5 |
| Crown (cc) | +19cc |
| Crown Type | Dish |
| Engine Family | Ford Big Block FE |
| Engine Family | Ford Big Block FE |
| Lock | 98 |
| Oil Ring Thickness (In) | 0.1875 |
| Pin Configuration | Offset |
| Pin Number | 0975x305A |
| Pin Type | Floating |
| Piston Head Type | Dish |
| Piston Head Type | Dish |
| Piston Pin Outside Diameter (In) | .975 |
| Piston Pin Outside Diameter (mm) | 24.8 |
| Second Compression Ring Thickness (In) | 0.0938 |
| Top Compression Ring Thickness (In) | 0.0781 |
| Top Land | .307 |
.
Data sheet
