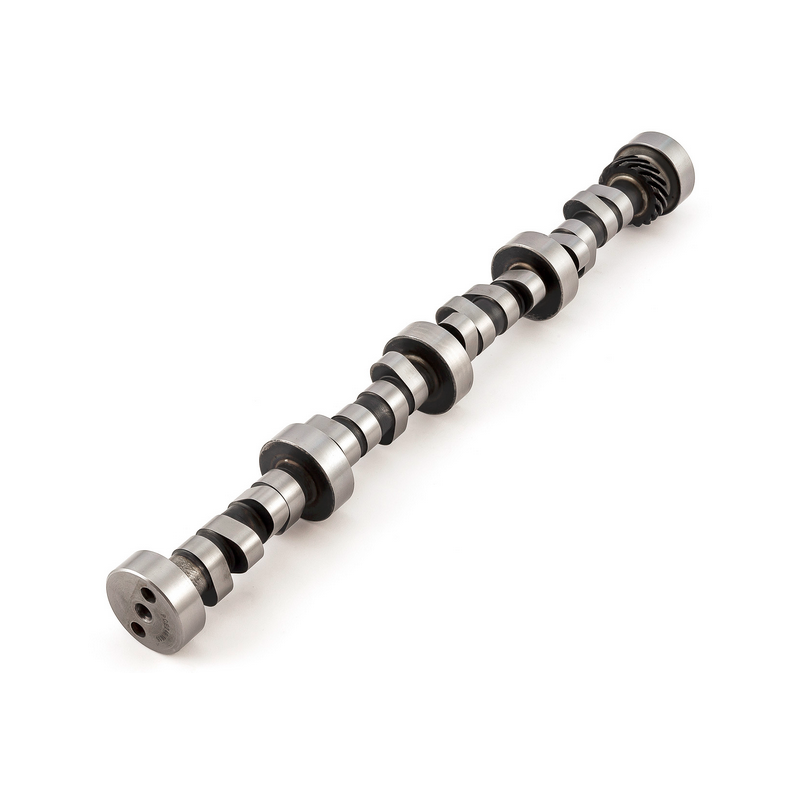

64-73 Medium camshaft, roller - hydraulic, for Small Block 289/302/351W engines. Cool sound, good performance.
Ignition sequence as in 351W or 302HO
.Applied by us in Strokers 347 and 408.Weaker vacuum than standard shaft. Roller tappets required.
| Cam Style: | Hydraulic roller, Retro-fit |
| Basic Operating RPM Range: | 2,000-6,000 |
| Intake Duration at 050 inch Lift: | 230 |
| Exhaust Duration at 050 inch Lift: | 236 |
| Duration at 050 inch Lift: | 230 int./236 exh. |
| Advertised Intake Duration: | 282 |
| Advertised Duration: | 289 |
| Intake Valve Lift with Factory Rocker Arm Ratio: | 0.513 in. |
| Exhaust Valve Lift with Factory Rocker Arm Ratio: | 0.529 in. |
| Valve Lift with Factory Rocker Arm Ratio: | 0.513 int./0.529 exh. |
| Lobe Separation (degrees): | 110 |
| Computer-Controlled Compatible: | No |
| Valve Springs Required: | No |
| Valve Springs Required: | Yes |
| Notes: | Must use 351W Firing Order: 1 - 3 - 7 - 2 - 6 - 5 - 4 - 8 |
Data sheet
