Gasket Material, A4 Size, 64-73
  • Gasket Material, A4 Size, 64-73
  • Gasket Material, A4 Size, 64-73
  • Gasket Material, A4 Size, 64-73

Gasket Material, A4 Size, 64-73

IT - 16-27250-03

Reinz gasket paper, DIN A4, Mustang 1964-1973

zł70.48
Quantity

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

favorite_border favorite
Description

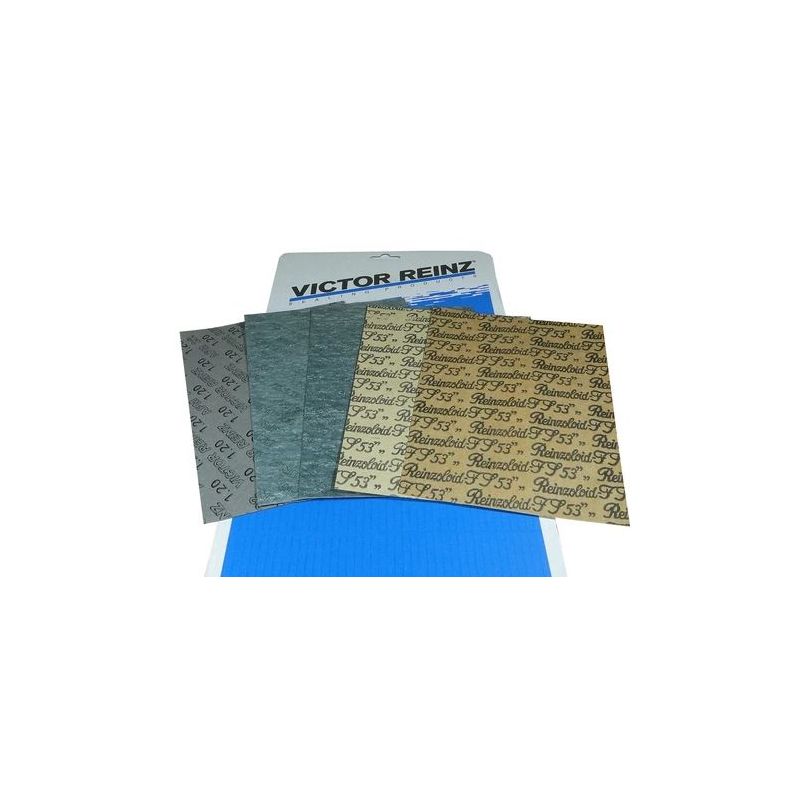

Victor Reinz gasket paper in DIN A4 format for cutting your own gaskets. It is resistant to fuels, oils, antifreeze and corrosion inhibitors. It is suitable for cutting universal engine, transmission (also called gearbox) and differential gaskets. The material is asbestos-free. It is not recommended for sealing steam or for use in dry, hot environments.

The set consists of 5 sheets of gasket paper measuring 297 mm x 210 mm, in four different materials and thicknesses:

  • 1x AFM 22, thickness 1.2 mm – temperature up to 400°C. The material has a galvanized steel sheet core, coated on both sides with a soft asbestos-free compound. Applications: intake manifolds (also called inlet manifolds), exhaust manifolds, transmission flanges, cylinder heads, etc.
  • 1x AFM 37/8, thickness 0.5 mm – temperature up to 300°C. Material made of aramid fibers bonded with elastomers, it seals oils and other fluids well. Applications: axles, intake manifolds, devices, transmissions, oil pans (also called sumps), pumps, pipelines, valve covers (also called rocker covers), etc.
  • 1x AFM 37/8, thickness 1.0 mm – temperature up to 300°C. Same applications as the 0.5 mm sheet: axles, intake manifolds, devices, transmissions, oil pans, pumps, pipelines, valve covers, etc.
  • 1x REINZOLOID FS 53, thickness 0.5 mm – temperature up to 120°C. Material based on impregnated cellulose fibers. Applications: axles, flanges, transmissions, fuel/ oil/ water pumps, control housings, thermostats, carburetors (also called carburettors), etc.
  • 1x REINZOLOID FS 53, thickness 1.0 mm – temperature up to 120°C. Same applications as the 0.5 mm sheet: axles, flanges, transmissions, fuel/ oil/ water pumps, control housings, thermostats, carburetors, etc.
Product Details
IT - 16-27250-03

Data sheet

Year
1964
1965
1966
1967
1968
1969
1970
1971
1972
1973

Specific References

MPN
16-27250-03
