TKX 5-speed manual transmission 64-73

TCET18085
Tremec

TKX 5-speed manual transmission, Mustang 1964-1973

zł19,756.80
Tax included
Quantity
Out-of-Stock

favorite_border favorite
favorite_border favorite Wishlist
Description

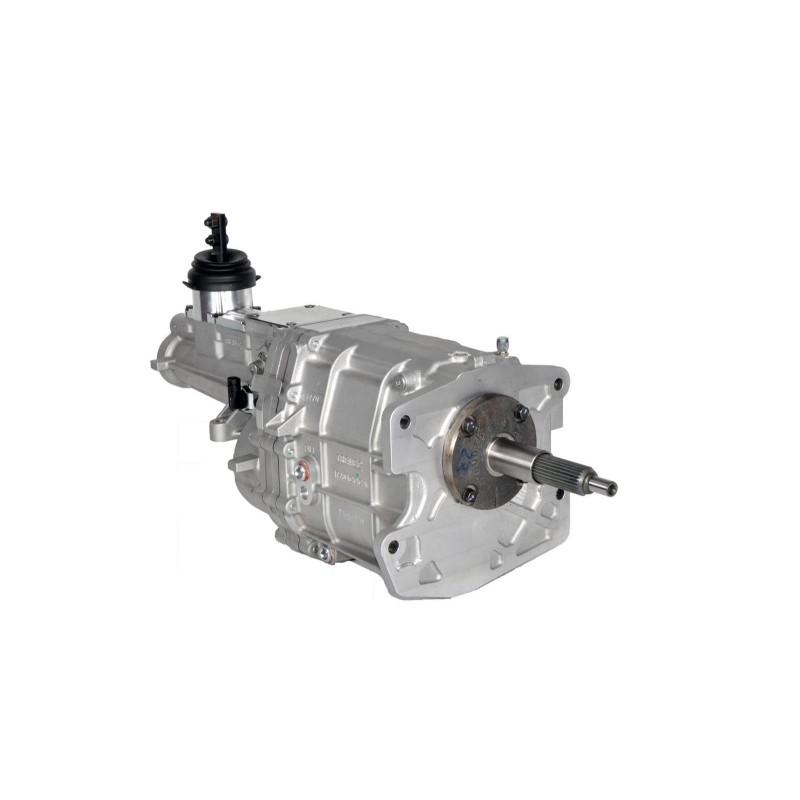

Tremec TKX 5-speed RWD manual transmission

Better fit:

Tremec has retained the best features of the TKO while optimizing the housing. They switched from the old top-load design to an end-load design – similar to the extremely robust Magnum. As a result, the TKX is significantly stronger and more compact.

  • Suitable for a wide range of applications with limited installation space

  • Requires minimal or no modifications to the vehicle floor

Improved performance:

The new design enables smooth gear changes at high speeds (up to 7,500 rpm) thanks to multiple conical synchronous rings and hybrid synchronous rings, with a load capacity of up to 600 lb-ft of torque .

  • Optimized NVH values (noise, vibration, roughness)

  • Reinforced, ribbed aluminum housing in 3 parts for stability and strength

  • Extra-wide gears made of ASTM 4615 steel for maximum durability

  • Seals on all flanges to prevent oil loss

  • Needle bearing cages in all gear positions

Characteristics:

  • Completely new 5-speed gearbox with simple overdrive

  • Designed for 600 lb-ft torque , 8,000 rpm engine speed , 7,500 rpm shifting operations

  • Three-piece aluminum housing for high strength

  • Sealed flanges to prevent oil loss

  • Multiple conical synchronizer rings for excellent shifting feel

  • Gear layout to reduce stress and NVH

  • Compact design with three gearshift lever positions

  • 26-tooth input shaft , 31-tooth output shaft

  • Integrated reversing light switch and cruise control safety switch

  • Ford housing pattern, input and transmission mount configuration

  • Included shift lever (rear-mounted, reversible), compatible with most Hurst® levers

Technical data:

specification Value
brand Tremec
Housing material aluminum
Drive type Rear-wheel drive
Emission code 5
Engine type ford
Translations 1st gear: 3.27, 2nd gear: 1.98, 3rd gear: 1.34, 4th gear: 1.00, 5th gear: 0.72, Reverse gear: 3.00
Input shaft gearing 26
Output shaft splines 31
Torque capacity 600 lb-ft
Gearbox model TKX
aisles 5
type manual transmission

Technical specifications & scope of delivery:

  • Suitable for Ford Mustang models from 1964 to 1973 with 6-cylinder or V8 engine

  • Delivery in pieces

  • Installation requires a suitable bell housing/adapter flange and a different rear gearbox support.

  • The length of the cardan shaft may need to be adjusted.

Product Details
TCET18085
TCET18085

Data sheet

Year
1964
1965
1966
1967
1968
1969
1970
1971
1972
1973
